Wrangler JL & Gladiator JT Regear
Running 35s, 37s or 40s?
Regear it right.
Big tires on factory gears cost you 7th and 8th gear.
A Revolution gear package puts the power back.
✓Back it up with Discovery Series 4340 chromoly axles.
10 Year Limited Warranty on the shafts.
2 Year Limited
Gear warranty
10 Year Limited
Discovery Series axles
Limited Lifetime
Driveshaft tubing & welds
Free Freight
On orders over $100
30-Day Returns
New, uninstalled parts
Step 1
Pick your ratio
Bigger tires need a numerically higher ratio. These recommendations are for Jeep JL or JTs with the 3.6L and 8-speed automatic.
Your engine, transmission, driving style and added weight like rooftop tents or other gear can impact what the right ratio is for your individual rig. Dana 35 gear packages top out at 5.13.
Step 2
Find your gear package
Includes front and rear gear sets, and master install kits with all the components needed to do the job right the first time.
JL Rubicon · All Gladiator JT

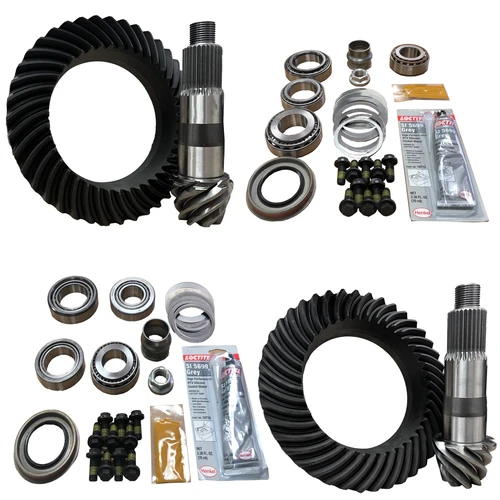

Dana 44 Front & Rear Gear Package
FrontDana 44 (M210)
RearDana 44 (M220)
Ratios
4.56 · 4.88 · 5.13 · 5.38
✓2-cut, face hobbed gears, cut the same way as OE
JL Non-Rubicon · Dana 44 Rear

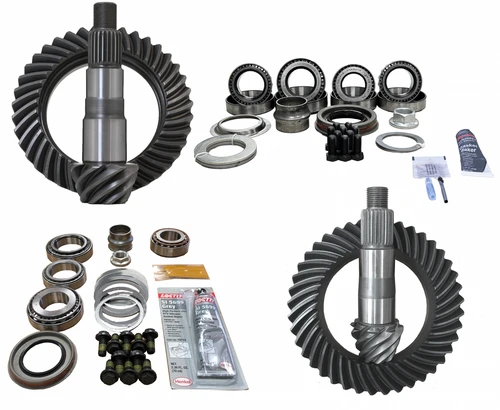

Dana 30 Front / Dana 44 Rear Gear Package
FrontDana 30 (M186)
RearDana 44 (M220)
Ratios
4.56 · 4.88 · 5.13 · 5.38
JL Non-Rubicon · Dana 35 Rear

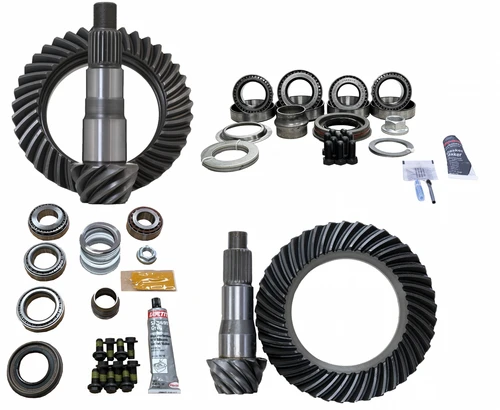

Dana 30 Front / Dana 35 Rear Gear Package
FrontDana 30 (M186)
RearDana 35 (M200)
Ratios
4.56 · 4.88 · 5.13
Not sure which rear axle is under your JL? Non-Rubicon JLs came with either a Dana 35 (M200) or a Dana 44 (M220) rear. Call 844-213-4327 or send us a message and we’ll help you confirm it before you order.
Adding a locker? Install it with your gears while the carrier is out. See ELockers in Step 4.
Need an Individual Gear Set?
Front and rear must match, so order the ratio you run at the other end.
Ring and pinion sets
Each gear set needs its own install kit. Add the matching master install kit for that axle. Gear packages already include them.
Master install kits
Step 3
Dial it in
New gears and tires mean your Jeep is running on the wrong numbers. Set your tire size and gear ratio so your speedometer reads true.
Programmer · Z Automotive

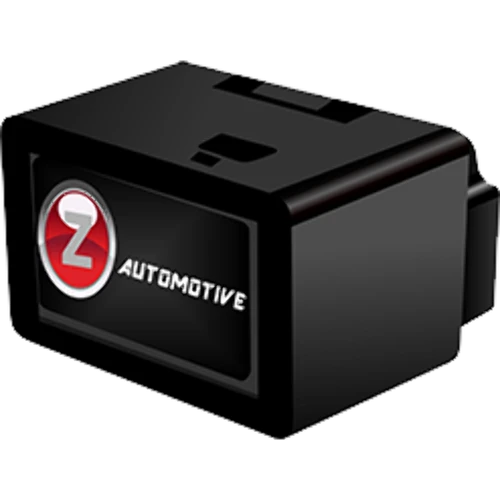

Tazer JL Mini
✓Sets your tire size and gear ratio, and recalibrates the speedometer
✓Plugs in where the factory security gateway module goes
✓Fits 2018-2026 JL and 2020-2026 JT
Running a 2021-2022 Wrangler 4xe? Gear ratios above 4.50 need a dealer update before the Tazer can set them.
Step 4
Build it once
Doing gears means the axles are already apart. Add shafts, lockers and covers now and pay for that labor once.
Axle shafts

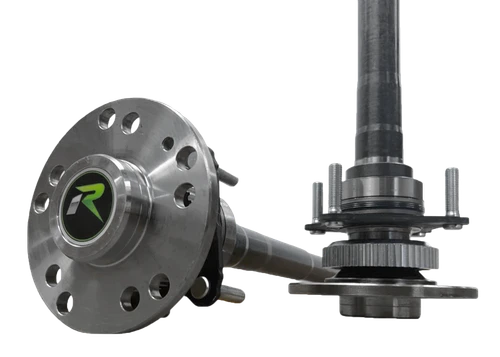

Discovery Series 4340 Chromoly Axle Kits
✓Rear kits ship pressed with bearings, seals and retainers, plus wheel studs in the box
✓10 Year Limited Warranty on the shafts against breakage, bent axles and twisted splines
Find Your Axle Kit
35 spline kits require a 35 spline aftermarket locker. Keeping the factory locker? Run a 32 spline kit. Rear kits are drilled for both 5x5 and 5x5.5 bolt patterns.
Rear axle kits
Front axle kits · wide-track Dana 44 (M210) with the factory 32 spline locker
Running a 35 spline kit or aftermarket diffs?
Lockers
Eaton ELocker
✓Runs open on the street and locks both wheels at the push of a dash switch
✓Electric, with the switch and wiring harness included
Find Your ELocker
JL and JT Rubicons come locked front and rear. The Dana 30 ELocker is the 3.73-and-up version, so it fits every ratio we sell. Match the rear to your axle spline count.
Dana 44 (M210 / M220) without a factory locker
Driveshafts

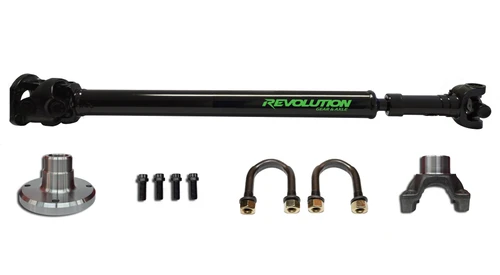

CV Driveshafts
✓1350 series for up to 42-inch tires and 6 inches of lift
✓Limited Lifetime Warranty on twisted tubing or broken welds
Find Your Driveshaft
DOM tubing with twice the strength of factory tubing. Ships with all components, ready to install. 1310 series for smaller tires and lifts. Check the limits on each option.
Wrangler JL
Diff covers

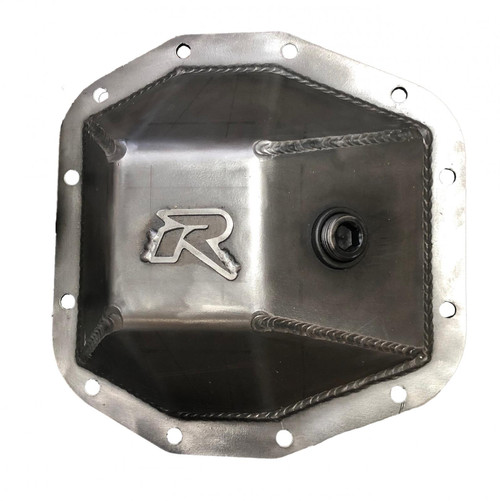

Heavy Duty Diff Covers
✓1/4-inch formed steel body with a 3/8-inch steel ring, made in the USA
✓1 Year Limited Warranty
Find Your Diff Cover
Bare steel: run it as is or paint it to match.
Keeping your factory axle shafts? Add a rear bearing & seal kit.
Why Revolution
Same part number. Same gear. Every time.
The No Re-Box Promise
Every ring and pinion set we sell is ours. We do not take someone else’s gears and put them in our boxes. Order the same part number twice, and you get the same gear twice.
Cut Like OE
Our JL and JT Dana 44 gears are face hobbed, 2-cut and lapped, the same process the OE brands use. Face hobbed gears run quieter and carry more load than face milled gears.
Veteran Owned
We proudly remain a second-generation family and veteran owned company.
Specs In The Open
We publish our differential setup specs so you and your installer start from the right numbers. Setup specs
Quick answers
Regear questions
The things JL and JT owners ask us most.
01Do I really need to regear for bigger tires?
If you want your Jeep to drive right, yes. Adding larger tires without regearing will cause you to lose 7th and 8th gear. Regearing to a numerically higher ratio restores performance and improves torque delivery to the wheels.
02What comes in a gear package?
Front and rear ring and pinion sets in the ratio you choose, plus matching front and rear master install kits with the components needed to overhaul each ring and pinion setup.
03Do the front and rear need the same ratio?
Yes. Front and rear must run the same ratio. A gear package gets you both in the ratio you pick.
04Which ratio should I run?
Start with the ranges above, then check them with our RPM calculator. Or send us your tire size, axle and transmission and we’ll tell you.
05Can I install gears myself?
Setting up gears takes the right tools and experience. We publish our differential setup specs and break-in procedure so you and your installer start from the right numbers.
06Do I need to reprogram after a regear?
Yes. Until you update the tire size and gear ratio, your Jeep is still calculating speed from the factory setup, so your speedometer reads wrong. The Tazer JL Mini sets both.
07Will 35 spline axles work with my factory locker?
No. 35 spline axle kits require a 35 spline aftermarket locker. If you’re keeping the factory locker, run the 32 spline kit made for your model.
08What’s the warranty?
Ring and pinions: Two Year Limited Warranty. Discovery Series axles: 10 Year Limited Warranty, covering manufacturing defects, breakage, bent axles and twisted splines (bearings and seals are wear items). Driveshafts: Limited Lifetime Warranty for twisted tubing or broken welds. Front axle u-joints: 1 Year. Diff covers, master install kits and bearing & seal kits: 1 Year Limited Warranty. Full details on our warranty page.
Join the Revolution
Not sure what fits your build?
Send us your tire size, axle and transmission and we’ll tell you what you need.
