*OX Offroad Lockers include Diff Cover. Actuation Method, Manual or Electric, and cable wiring must be purchased separately.
OX Offroad Lockers are MADE IN USA and offer superior reliability and performance. With just a simple shift you can go from a normal factory on-road handling characteristics to full lock giving your vehicle its maximum capable traction for the toughest terrain. Ox lockers are offered with the widest variety of options available using, 100% mechanical, air, or electric shifting systems. The locking differential is the same regardless of your choice of shift system. In addition, all lockers and shift systems are compatible with our failsafe mechanical backup locking device.
OX Offroad Lockers internal gear sets are of a 4 pinion design providing maximum durability, with a timed locking mechanism designed to hold the internal gear sets in the strongest position possible when locked. The locking mechanism is a simple mechanical shift fork and ring design much like a manual transmission shift mechanism that has proven reliable it the automobile for over 100 years.

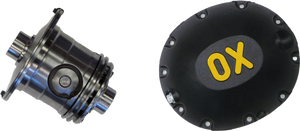

The internal shifting mechanism is 100% mechanical even when used with the pneumatic or electrical shift systems. Shifting actuation is accomplished through a shift fork mounted in a heavy-duty differential cover that not only engages the differential into lock but also adds rigidity and protection to your axle.
OX Offroad Manual Shift System Features:
- Simple 100% Mechanical Design
- Not vulnerable to electric or pneumatic system failure or extreme environmental conditions
- Wide range of cable lengths for desired shifter mounting locations, custom lengths available
- Manual shifter lockout feature can be engaged preventing unwanted shifting transitions
- Proper cable routing is the key to unlimited trouble free operation. Poor cable routing and protection are the causes for almost all manual shifting system troubles.
OX Offroad Electric Shift System:
- Easy cabin friendly installation
- Not vulnerable to extreme environmental conditions
- Requires no power in lock or unlock, only for shift transition
- Vehicle Make:
- Jeep
- spec|Axle Splines:
- 27 Spline
- spec|Traction Type:
- OX Offroad Locker
- spec|Carrier Break:
- 3.55 And Up
- spec|Differential:
- Dana 35
- spec|Vehicle Location:
- Rear
- Vehicle Type:
- Jeep
- Product Category:
- Differentials and Traction
